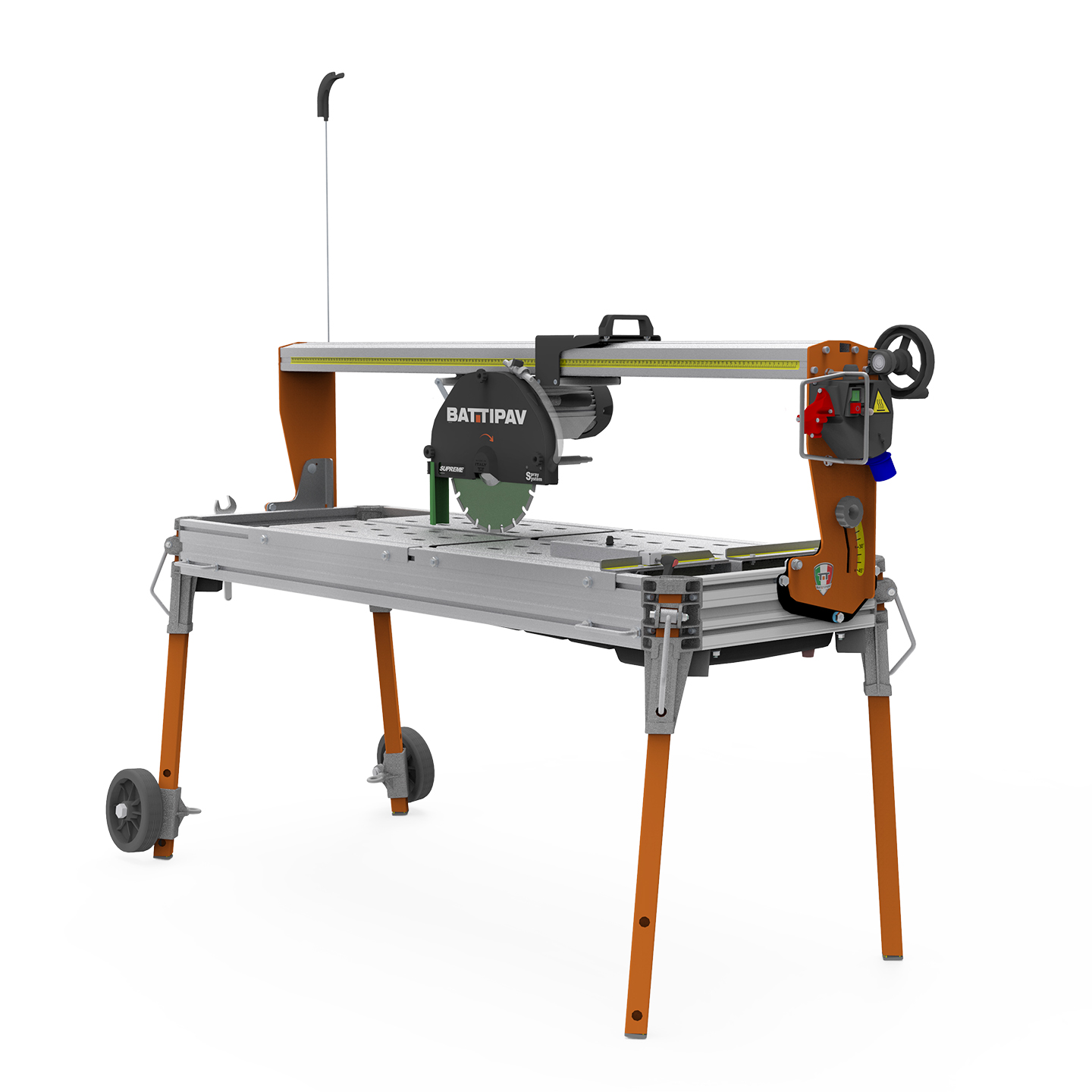

Equipped with:
- Thermal and amperometric protection
- Manual reset circuit breaker
- Sliding cutting head and tilting motor assembly
- Handwheel-operated cut feed
- P3 pump
- Ø300 mm diamond blade not included
Supreme
Description
Description
BRIDGE – The rail is an extrusion of aluminium with high resistance to the torsional stress. It’s qeuiped with ball-bearings running on an intechangeable stainless steel tracks. Absolute cutting precision.
STRUCTURE – The structure is made of aluminium to esure rigidity and lightness at the same time.
SCALE MEASURE – Millimitres graduated scale for a fast execution of the cut series.
RAIL
Beam equipped with interchangeable steel guides to ensure smooth sliding of the motor assembly carriage.
SPRAY SYSTEM
Patented system that ensures optimal lubrication of the diamond blade, guaranteeing higher cutting efficiency and extended diamond tool life.
CABLE CARRIER SYSTEM
The cable carrier system enhances protection and improves ergonomics. Only for models 150 / 200 / 260 / 320
CARRIAGE
The motor assembly carriage moves along the beam via 8 bearings that slide on interchangeable stainless steel guides.
WORKTABLE EXTENSION – (OPTIONAL)
Made of galvanized steel, it can be mounted on both sides of the machine; allows for cutting large formats. | Code 90258C
STORAGE
Minimizes footprint during transport.
Scheda Tecnica
Supreme
| SUPREME 85 S | SUPREME 100 S | SUPREME 120 S | SUPREME 150 S | SUPREME 200 S | SUPREME 260 S | SUPREME INFINITY 320 S | |
| Motor power | 3 Hp / 2,2 Kw / 9A | 3 Hp / 2,2 Kw / 9A | 3 Hp / 2,2 Kw / 9A | 3 Hp / 2,2 Kw / 9A | 3 Hp / 2,2 Kw / 9A | 3 Hp / 2,2 Kw / 9A | 4,5 Hp / 3,4 Kw / 6A |
| Rotation speed | 2800 rpm | 2800 rpm | 2800 rpm | 2800 rpm | 2800 rpm | 2800 rpm | 2800 rpm |
| Diamond blade diameter / Bore | 300 mm / 25,4 mm | 300 mm / 25,4 mm | 300 mm / 25,4 mm | 300 mm / 25,4 mm | 300 mm / 25,4 mm | 300 mm / 25,4 mm | 300 mm / 25,4 mm |
| Lunghezza massima di taglio | 850 mm | 1000 mm | 1200 mm | 1500 mm | 2000 mm | 2600 mm | 3200 mm |
| Maximum diagonal cutting length | 600 x 600 mm | 705 x 705 mm | 845 x 845 mm | 1060 x 1060 mm | 1410 x 1410 mm | 1839 x 1839 mm | 2260 x 2260 mm |
| Spessore massimo di taglio | 85 mm | 85 mm | 85 mm | 85 mm | 85 mm | 85 mm | 85 mm |
| Maximum jolly cutting thickness | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Maximum cutting thickness in 2 passes | 135 mm | 135 mm | 135 mm | 135 mm | 135 mm | 135 mm | 135 mm |
| Work table size | 855 x 625 mm | 855 x 625 mm | 1185 x 625 mm | 1485 x 625 mm | 2055 x 625 mm | 2715 x 625 mm | 3340 x 625 mm |
| Machine weight | 94,3 kg | 97,2 kg | 104,0 kg | 125,6 kg | 141,0 kg | 151,0 kg | 212,5 kg |
