|Max cutting lenght|
|Size tile for diagonal cutting|
|Max cutting thickness|
|Max cutting depth for 45° (jolly) cut|
|Diamond blade diameter|
|Side bench dimesion|
Up to 970 mm
|Water tank capacity|
Min.23 / Max.36 liters
|Side tile support|
|Long slot for side tile support|
|Side banch with rollers|
|Extension side bench|
|Cutting progress system|
|SRS phase inverter|
PRIME 700 is a bridge saw ideal for the building sector.
New design with vanguard technical innovation, strong and precise, it is suitable for cutting brick blocks, natural stones, poroton, concrete blocks.
It makes cuts moving forward manually the engine group. It is built to work with diamond disks Ø700.
Laser instrument can be supplied standard or as optional.
– Three phases engine 400V 50Hz 5,5Hp/4Kw with thermal and amperometrical protection
– Switch with release coil
– Overheat protection with manual reset

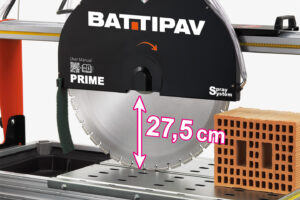

– Sliding cutting head

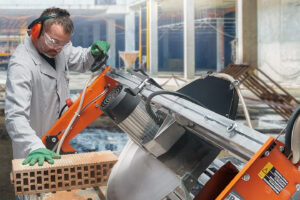

– Cutting progress system with hand wheel
– Kit wheels
– Adjustable legs
– Adjustable goniometer fence
– Water recycling pump type S3
Disk Ø700 mm not included
