EXPERT 700

Art. 9700

Stone saw ideal for the building sector suitable for cutting bricks, poroton blocks, marble blocks and all the different kind of materials for the building sector.

Max cutting lenght

Blade Ø700=550 mm (blade Ø650=580 mm)

Size tile for diagonal cutting

389×389 mm

Max cutting thickness

Blade Ø700=270mm (blade Ø650 =240mm)

Diamond blade diameter

Ø700 mm

Tool hole

Ø25.4mm

Power engine

5,5Hp/4Kw, 8A

Machine's dimension in stock

72x160x108 cm

Rotation speed

1400/1700rpm

Water tank capacity

Min.21/Max.32 liters

Max cutting depth with 2 RUNS

340 mm

Engine type

TRIFASE – 400V~50/60Hz

Water pump

S3

Machine's dimension

1540x900xH1630mm

Weight

95 kg

Packaging

1

Amperometric protection

10-16A

Fence

Standard

Side bench dimesion

515x520mm

Wheels

Standard

Thermic protection

160°C

SRS phase inverter

Optional

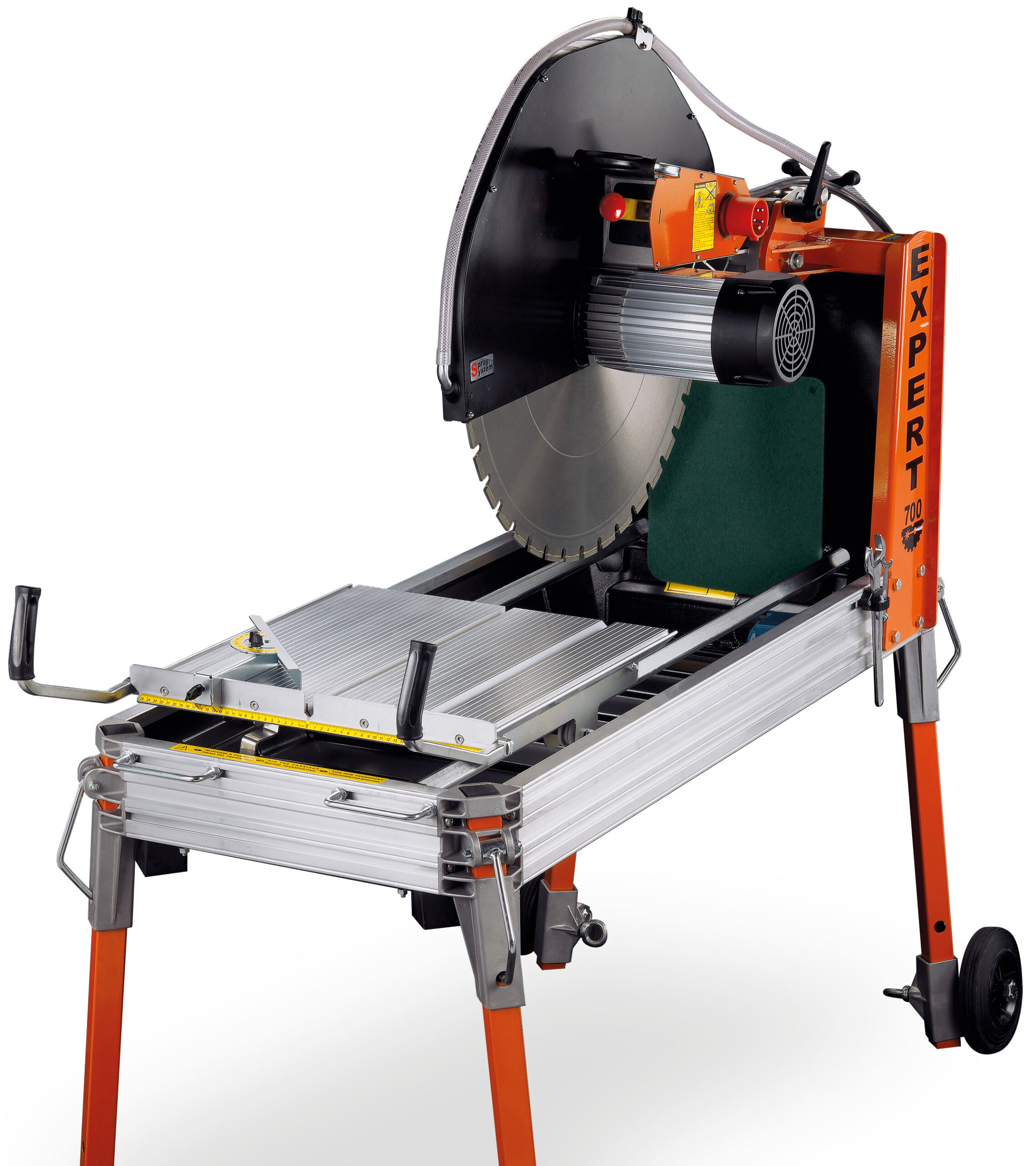

EXPERT 700 is a masonry saw ideal for the building sector.
Innovative design with high tech solutions, very precise, compact, light and strong, it’s suitable for cutting bricks, poroton blocks, marble blocks and all the different kind of materials for the building sector.
It makes cuts pushing the sliding working table and it is built to work with diamond disks from Ø 650 or Ø 700 mm.
It is equipped with wheels for easy transport.

Equipped with:
– Three phases engine 400V 50Hz 5,5Hp/4Kw with thermal and amperometrical protection
– Switch with release coil and overheat protection with manual reset
– Adjuistable cutting head
– Sliding working table
– Kit wheels
– Adjustable legs
– Adjustable goniometer fence
– Water recycling pump type S3

Water cooled
Disk Ø700 mm not included.

STRUCTURE

Aluminium draw-plate to get the maximun of rigidity and lightness at the same time.
It has four handles for the carriage and movement.

FAMEWORK BRIDGE

Strong framework bridge holding the head motor group.

CUTTING BLADE ADJUSTMENT

Adjustment system of the cutting height with an hand wheel and relevant locking lever

STRAIGHT CUTS

Cutting position with sliding carriage.
