| Power engine | 3Hp / 2,2Kw, 9A |
|---|---|
| Amperometric protection | 13 A |
| Max cutting lenght | 800 mm |
| Max cutting thickness | Disco Ø350 = 105 mm | Disco Ø400 = 135 mm |
| Diamond blade diameter | Ø 350 mm / Ø 400 mm |
| Thermic protection | 160°c |
| Weight | 65 KG |
| Packaging dimension | 121 x 71 x 68 cm |
| Dimensione pallet completo | 121 x 71 x 203 cm |

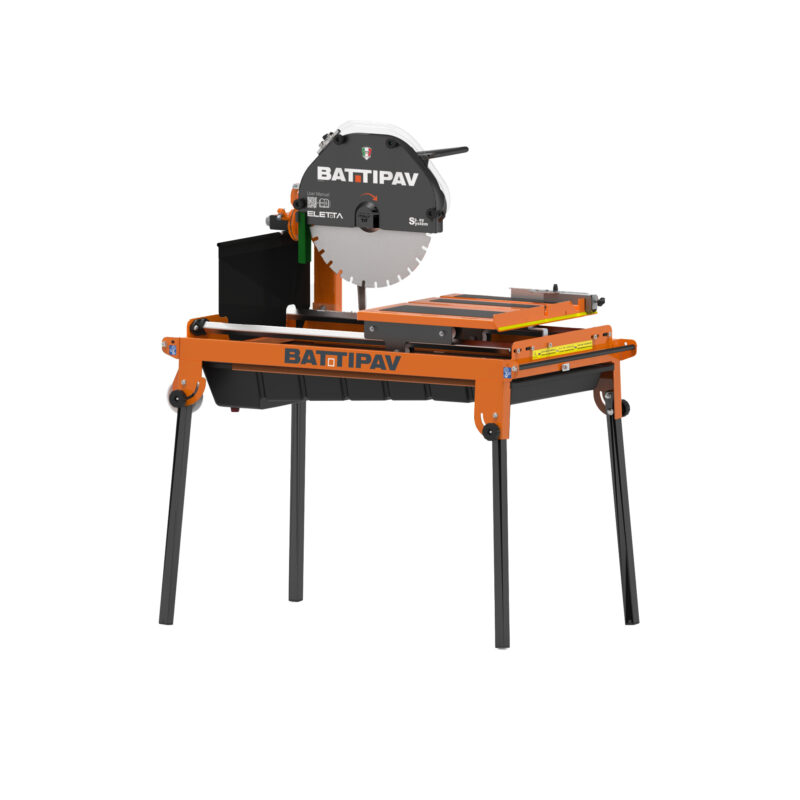

Eletta is the new saw for the building sector. It is essential in the design, compact and strong. It’s suitable for cutting bricks, stones, concrete blocks, natural stones. It cuts by pushing the sliding working table or plunging the cutting head. The cutting head turns to 45°. It is equipped with removable water tray, wheels and folding legs for an easy transport. It is designed to work with disks Ø400 and Ø350 mm. Tank capacity: 40 Lt. Works with water. Diamond disc not included.
Equipped with:
- Single-phase motor 230V~50Hz 3Hp/2.2 Kw with thermal and amperometric protection
- Minimum voltage switch
- Manual reset circuit breaker
- Sliding trolley and tilting cutting head
- Transport wheels
- Adjustable protractor square
- Water recirculation pump type S0
