PRIME 85S

Max cutting lenght	850 mm
Size tile for diagonal cutting	600×600 mm
Max cutting thickness	110 mm
Max cutting depth for 45° (jolly) cut	80 mm
Diamond blade diameter	Ø350 mm
Tool hole	Ø25,4 mm
Power engine	3Hp/2,2Kw, 9A
Machine's dimension in stock	72x160x100 cm
Max cutting depth with 2 RUNS	180 mm
Laser instrument	Standard
Engine type	SINGLE-PHASE 230V~50Hz
Rotation speed	2800rpm
Amperometric protection	13 A
Side bench dimesion	855×625 mm
Machine's dimension	1620x900x H1305 mm
Weight	85 kg
Thermic protection	160°C
Water pump	S3
Water tank capacity	Min.21/Max.32 liters
Side tile support	Optional
Long slot for side tile support	Optional
Cutting progress system	Optional
Side banch with rollers	Optional
Extension side bench	Optional
Wheels	Standard
Fence	Standard

Description

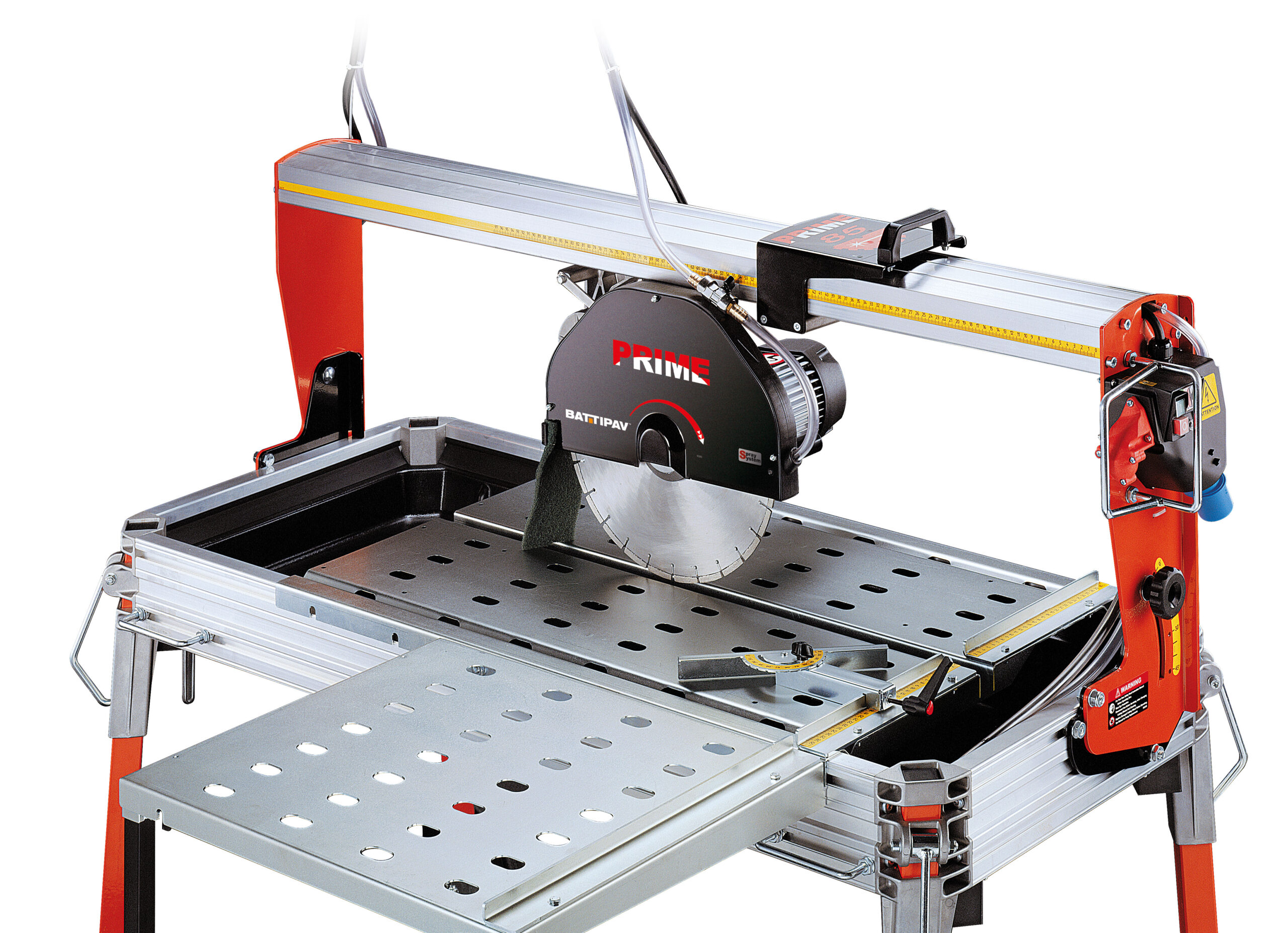

PRIME is a bridge saw ideal for the building sector. New design with vanguard technical innovation, strong and precise, it is suitable for cutting bricks, stones, concrete blocks, granite, marble, slabs.
It makes cuts moving forward manually the engine group.
It is built to work with diamond disk Ø350 mm.
Laser instrument and kit wheels are supplied standard or as optionals.

Equipped with:
– Single phase engine 230V 50Hz 3Hp/2,2 Kw with thermal and amperometrical protection
– Switch with release coil
– Overheat protection with manual reset
– Sliding cutting head and tilting engine
– Laser instrument
– Kit wheels
– Adjustable legs
– Adjustable goniometer fence
– Water recycling pump type S3

Water cooled
Disk Ø 350 mm not included
Three phase engine available upon request.

STRUCTURE

Alluminium draw-plate to get the maximum of rigidity and lightness at the same time.
BRIDGE
The rail is in extrusion of aluminium at high resistance to the torsional stress.
It’s equipped with interchangeable stainless steel bearings-tracks.
Absolute cutting precision.
SCALE MEASURE
Millimitres graduated scale for a fast execution of the cuts in series.
GONIOMETER FENCE
A professional adjustable goniometer fence is included.
SIDE TABLE
The extension side table, made in galvanized steel, is optional and can be mounted in both the sides of the machine. It allows the cut of big sizes.

CARRIAGE

The carriage engine group slides on the rail by means 8 ball-bearings, of which 4 works always in perpendicular way respect to the rail. So doing the sliding is very fast and precise.

POSITION 45° ANGLE CUTS.

Position 45° angle cuts.
The wiring of the cables is integrated inside the rail to avoid they interfere in the cutting area. Powerfull engine 3Hp / 2,2 KW with thermal and amperometrical protection.

CUTTING DEPTH

The adjustment of the cutting depth occurs by means the locking of the tilting of the engine group. A simple and easy graduated scale measures directly the cutting depth.

CONTROL BOARD

The control board includes:
– switch with release coil
– overheat protection with manual reset in the event of the disk jamming
– red light for signalling the presence to connection net
– green light for signalling machine on function
– laser instrument for the maximum cutting precision (optional in standard version)
– Plug industrial type

WORKING TABLE

The working table, of large dimension (620 mm.), is made in galvanized steel.
The water tank, realized in abs material, crash and consumption proof.
– It’s easy to clean and realized to divide the cutting rubble from the recycling water’s area.
– Water recycling pump type S2 included.
